7.8 cu.ft. Heat Pump Dryer with DirectDrive® and AI Sensor Dry®

Specs

Reviews

Support

7.8 cu.ft. Heat Pump Dryer with DirectDrive® and AI Sensor Dry®

7.8 cu.ft. Heat Pump Dryer with DirectDrive® and AI Sensor Dry®

DLHC5502V
  • Front view of LG 7.8 cu.ft 6-Motion DirectDrive® Dryer, Heat Pump
  • Front door open view
  • Drum detailed view
  • Knob detail low angle view
  • Technical dimension and installation diagram for the LG Front Load Dryer: 27 in (70 cm) wide, 39 in (99 cm) high, 32 1/4 in (82 cm) deep, and 52 3/4 in (134 cm) with door open, detailing required installation and venting clearances.
  • The LG Front Load Dryer DLHC5502V in Graphite Steel, highlighting its advanced technology that uses up to 65% less energy for superior efficiency.
  • The control panel of the LG Front Load Dryer DLHC5502V in Graphite Steel, highlighting the AI Dry intelligence that automatically sets the optimal drying cycle based on fabric type.
  • The LG Front Load Washer and Dryer set (DLHC5502V) in Graphite Steel, showcasing its premium aesthetic and seamless, flush integration into modern wood cabinetry.
  • Knob window display detail view
  • Door handle detail view
  • Knob window display detail view3
  • Knob window display detail view2
  • Front high angle view
  • Left side view
  • Back view
Front view of LG 7.8 cu.ft 6-Motion DirectDrive® Dryer, Heat Pump
Front door open view

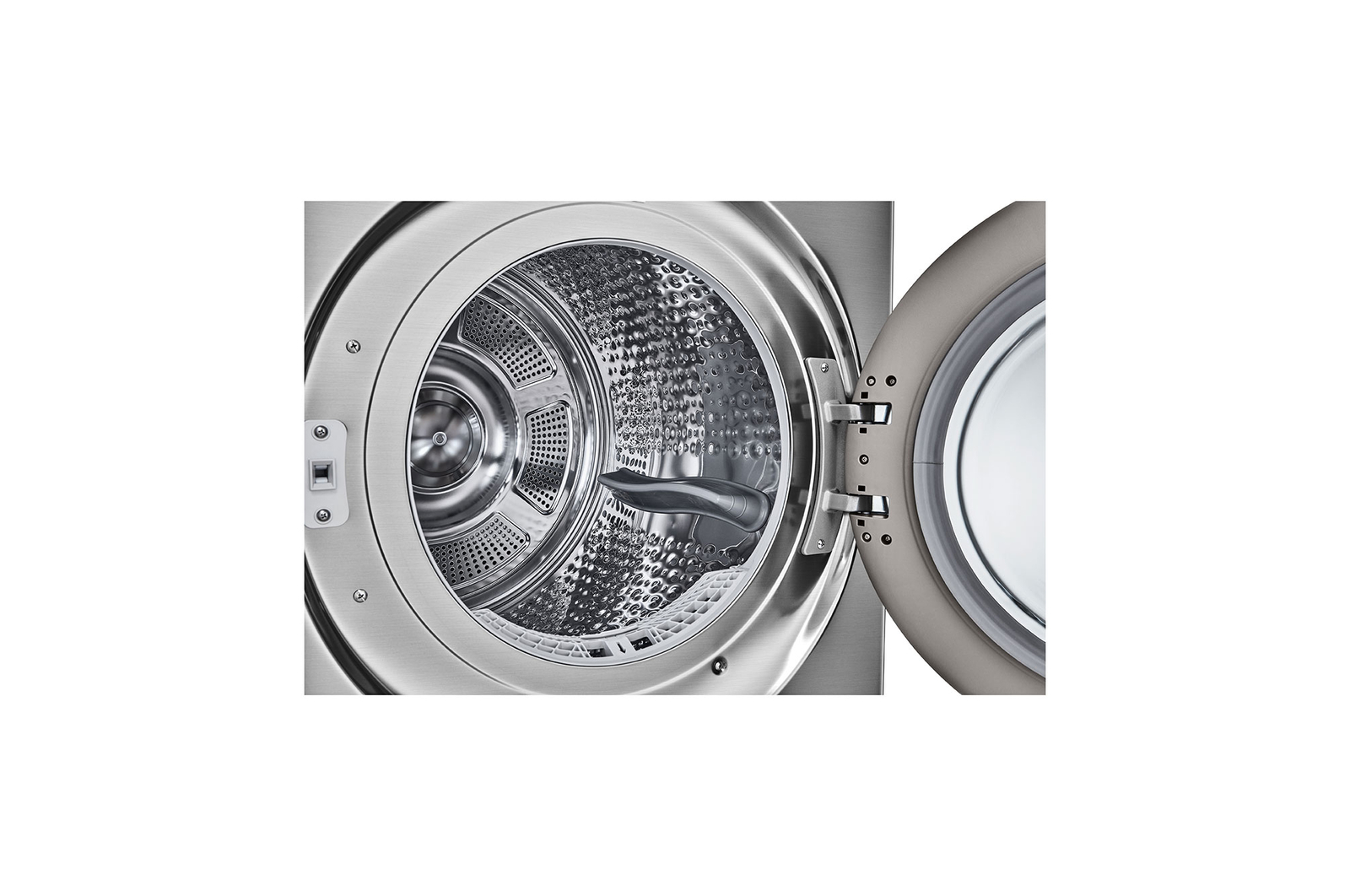

Drum detailed view
Knob detail low angle view

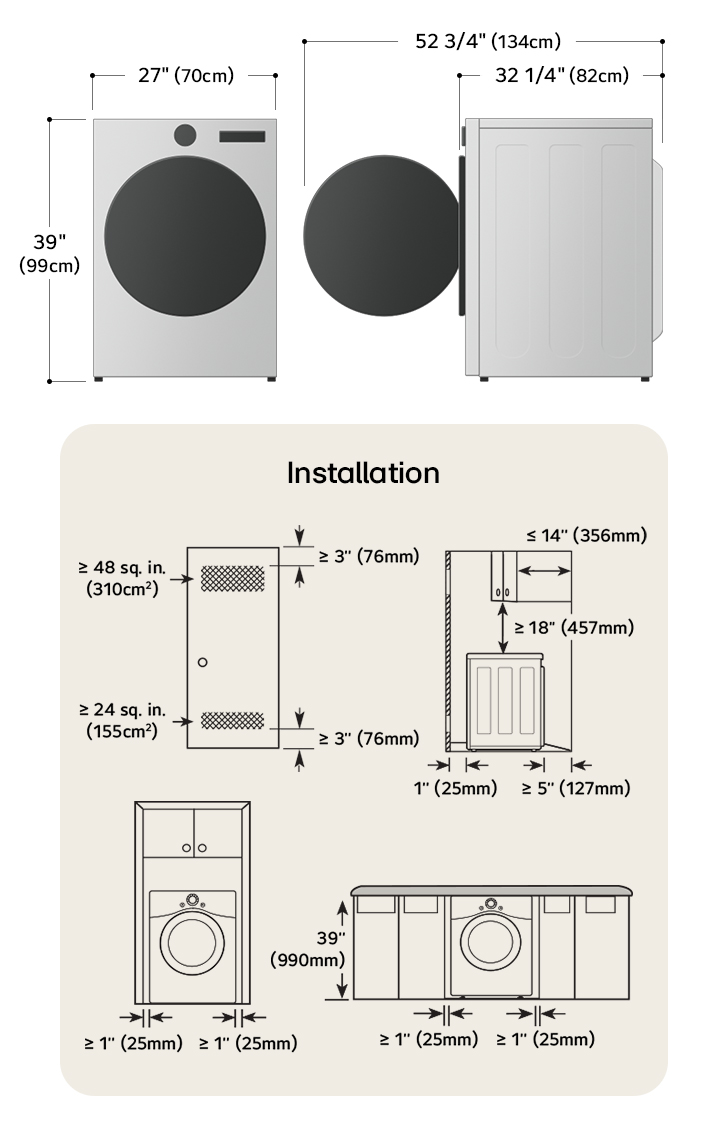

Technical dimension and installation diagram for the LG Front Load Dryer: 27 in (70 cm) wide, 39 in (99 cm) high, 32 1/4 in (82 cm) deep, and 52 3/4 in (134 cm) with door open, detailing required installation and venting clearances.
The LG Front Load Dryer DLHC5502V in Graphite Steel, highlighting its advanced technology that uses up to 65% less energy for superior efficiency.

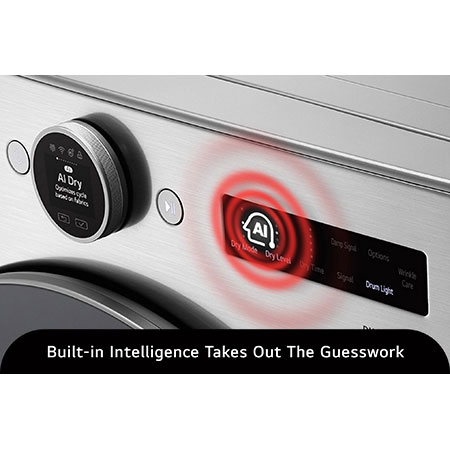

The control panel of the LG Front Load Dryer DLHC5502V in Graphite Steel, highlighting the AI Dry intelligence that automatically sets the optimal drying cycle based on fabric type.

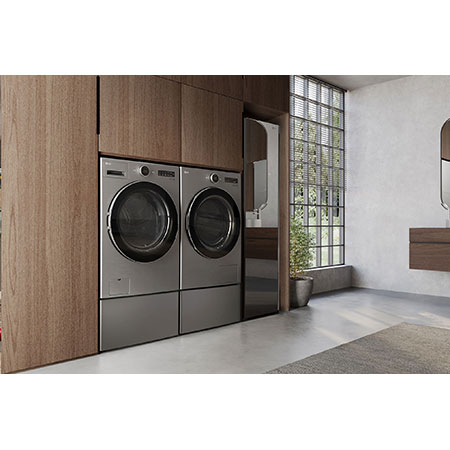

The LG Front Load Washer and Dryer set (DLHC5502V) in Graphite Steel, showcasing its premium aesthetic and seamless, flush integration into modern wood cabinetry.
Knob window display detail view
Door handle detail view
Knob window display detail view3
Knob window display detail view2

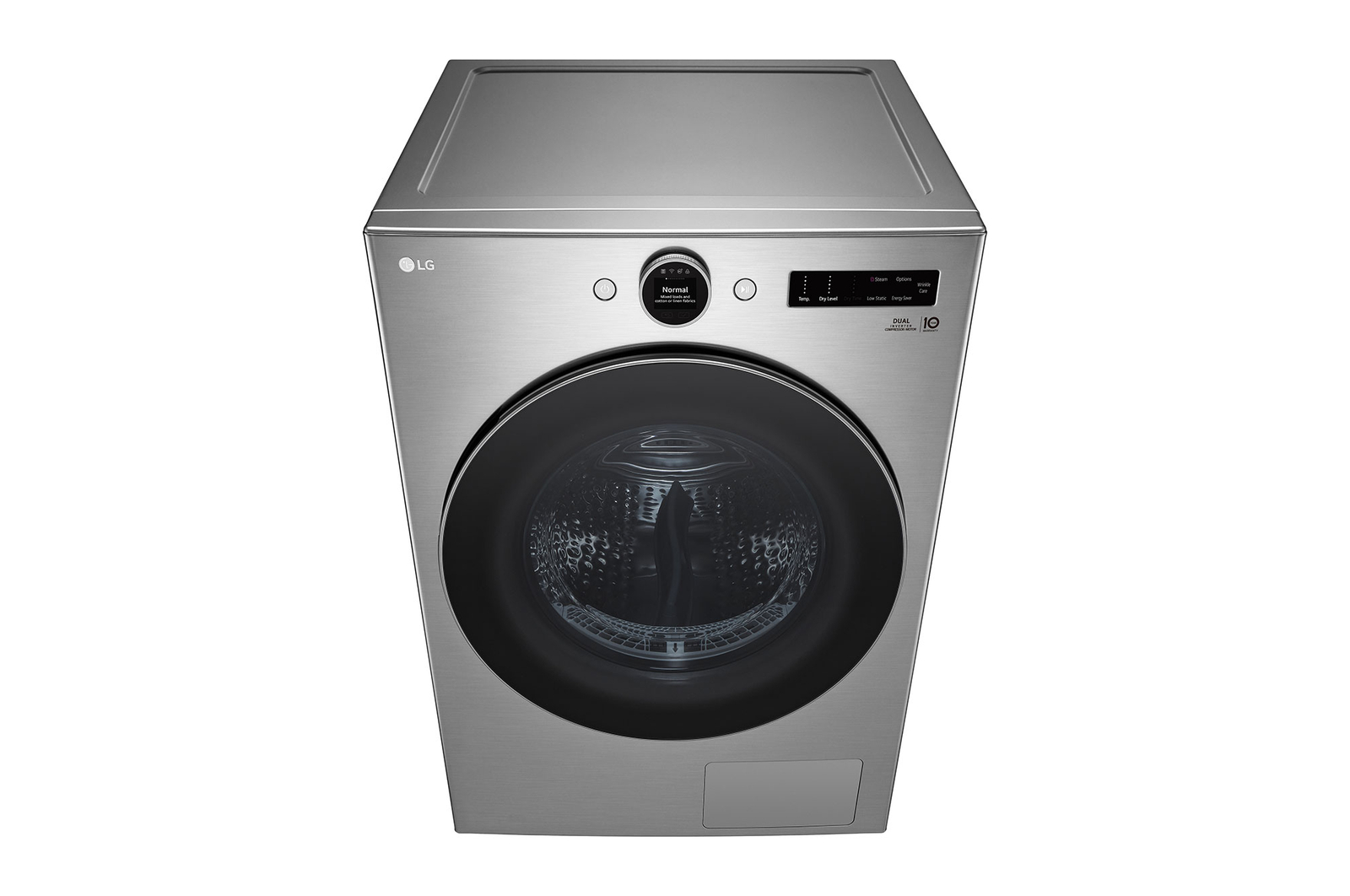

Front high angle view
Left side view

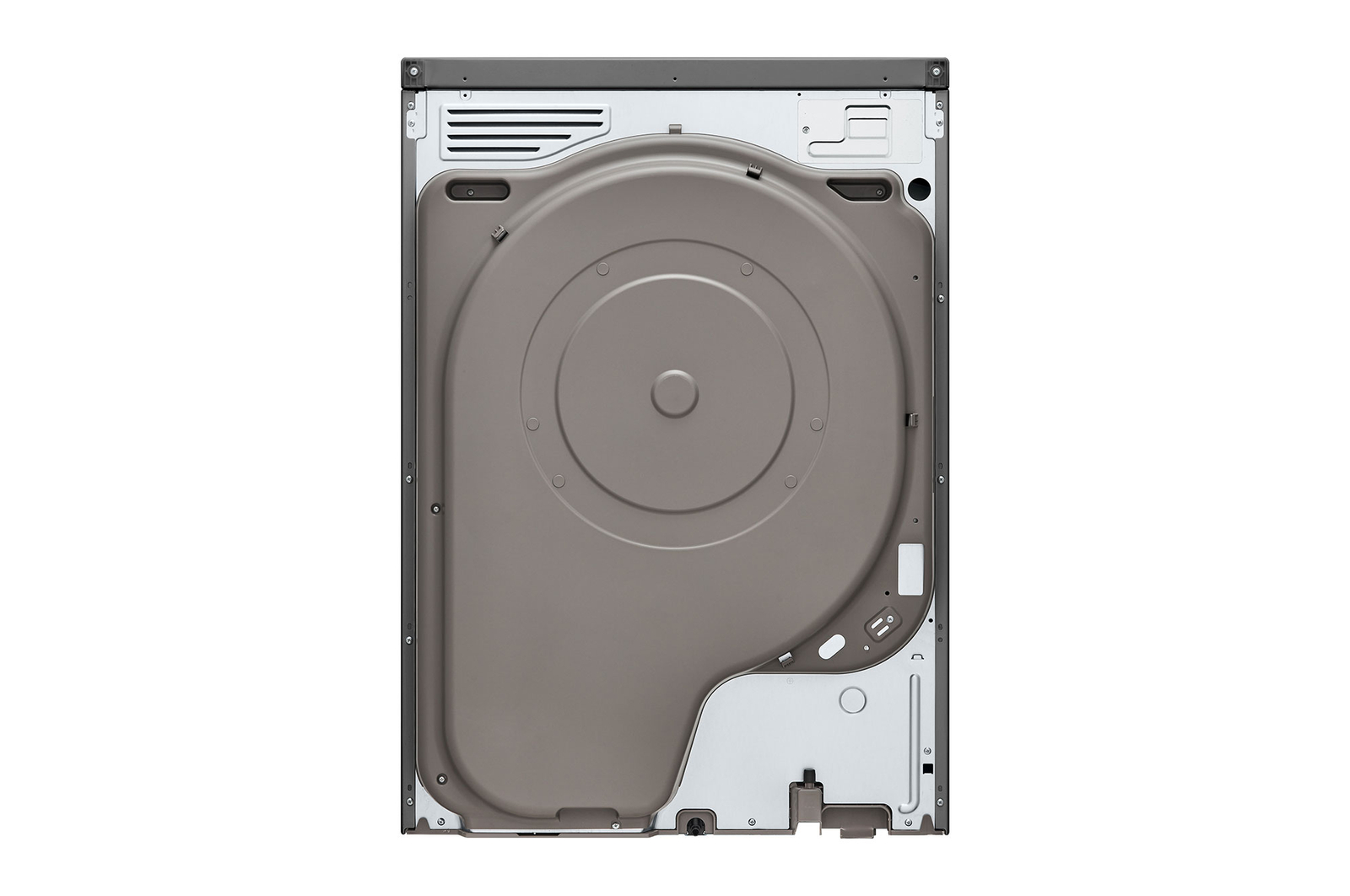

Back view

Key Features

  • LG's Exclusive DirectDrive®Heat Pump Dryer
  • Greatest Energy Savings
  • Built-in Intelligence Takes Out The Guesswork
  • Go Big To Save Time And Get More Done
  • Digital Dial Control with LCD Display
  • ThinQ®
More

SUMMARY

Print

DIMENSIONS

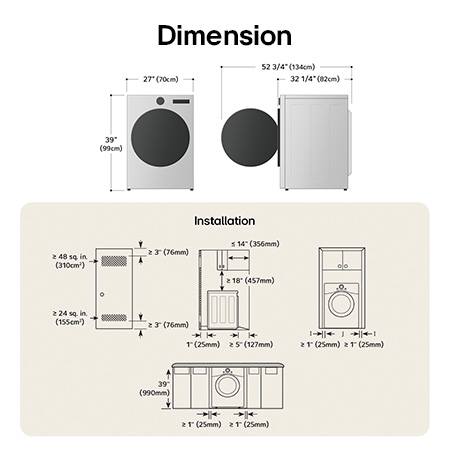

Technical dimension and installation diagram for the LG Front Load Dryer: 27 in (70 cm) wide, 39 in (99 cm) high, 32 1/4 in (82 cm) deep, and 52 3/4 in (134 cm) with door open, detailing required installation and venting clearances.
Dimensions (WxHxD inch)
27 x 39 x 32 1/4
Capacity(cu.ft)
7.8

Key Spec

  • Body Color

    Stainless Silver

  • Dimensions (WxHxD inch)

    27 x 39 x 32 1/4

  • DUAL Inverter HeatPump

    Yes

  • Auto Cleaning Condenser

    Yes

  • Heat Source Type

    Heat Pump Electric

  • Reversible Door

    No

  • Smart Pairing

    Yes

  • ThinQ(Wi-Fi)

    Yes

All Spec

SMART TECHNOLOGY

  • Download Cycle

    Yes

  • Smart Pairing

    Yes

  • Energy Monitoring

    Yes

  • Proactive Customer Care

    Yes

  • Remote Start and Cycle Monitor

    Yes

  • Smart Diagnosis

    Yes

  • ThinQ(Wi-Fi)

    Yes

  • Voice Control (3rd party device)

    Yes

ADDITIONAL OPTIONS

  • Dry Mode

    Yes

  • Air Dry

    Yes

  • Condenser Care

    Yes

  • Control Lock

    Yes

  • Custom PGM

    Yes

  • Damp Dry Signal

    Yes

  • Drum Care

    Yes

  • Drum Light

    Yes

  • Dry Level

    5 Levels

  • Easy Iron

    No

  • Energy Saver

    No

  • Less Time

    No

  • More Time

    No

  • Rack Dry

    Yes

  • Reduce Static

    No

  • Remote Start

    Yes

  • Signal(Sound)

    Yes

  • Silent Dry

    Yes

  • Steam

    No

  • Temp.

    No

  • Time Dry

    Yes

  • TurboSteam

    No

  • Wi-Fi

    Yes

  • Wrinkle Care

    Yes

BAR CODE

  • Bar Code

    195174067925

CAPACITY

  • Capacity(cu.ft)

    7.8

CONTROL & DISPLAY

  • Display Type

    Dial + Full Touch Buttons & LCD+LED Display

  • Delay Timer

    No

  • Door Lock Indication

    No

  • Timer Display

    LCD

DIMENSIONS & WEIGHTS

  • Carton Dimensions (WxHxD inch)

    29 9/16 x 42 3/4 x 33 9/16

  • Dimensions (WxHxD inch)

    27 x 39 x 32 1/4

  • Product Depth with door open 90˚ (inch)

    52 3/4

  • Weight include packing (lbs)

    178.0

  • Weight (lbs)

    166.5

ENERGY

  • ENERGY STAR® Qualified

    Yes

  • CEF

    9.0

  • ENERGY STAR® Most Efficient

    Yes

FEATURES

  • Type

    Condenser Dryer (Ventless)

  • 6 Motion DD

    Yes

  • ADA Compliant

    Yes

  • AI DD

    Yes

  • AI Sensor Dry

    Yes

  • Auto Cleaning Condenser

    Yes

  • Auto Restart

    No

  • Drum Light

    Yes

  • DUAL Inverter HeatPump

    Yes

  • Dual Lint Filter

    Yes

  • EasyLoad Door

    No

  • Embossing Inner Drum

    Yes

  • End of Cycle Signal

    Yes

  • Heat Source Type

    Heat Pump Electric

  • Inverter DirectDrive

    Yes

  • Inverter Motor

    Yes

  • Leveling Legs

    Yes

  • LoadSense

    Yes

  • NeveRust Stainless Steel Drum (drum side)

    Yes

  • Reversible Door

    No

  • Sensor Dry

    Yes

  • SteamFresh

    No

  • TrueSteam

    No

  • TurboSteam

    No

MATERIAL & FINISH

  • Body Color

    Stainless Silver

  • Door Type

    Black Tinted Tempered Glass Cover

  • Drum Back

    Stainless Steel

  • Drum Side

    Stainless Steel

OPTIONS/ACCESSORIES

  • Matching Pedestal

    WDP6V

POWER SOURCE

  • Electrical Requirements

    240V, 60Hz, 4.2A (208V, 60Hz, 4.0A)

PROGRAMS

  • AI Dry

    Yes

  • Activewear(Sportswear)

    Yes

  • Air Dry

    Yes

  • Antibacterial

    No

  • Bedding

    Yes

  • Bedding Refresh

    Yes

  • Condenser Care

    Yes

  • Delicates

    Yes

  • Downloaded

    Yes

  • Down Jacket Refresh

    Yes

  • Drum Care

    Yes

  • Easy Ironing

    Yes

  • Freshen Up

    No

  • Heated Dry

    No

  • Heavy Duty

    Yes

  • Jumbo Dry

    No

  • Normal

    Yes

  • Outerwear Refresh

    Yes

  • Perm. Press

    Yes

  • Power Dry

    Yes

  • Quick Dry (Speed Dry)

    No

  • Rack Dry

    Yes

  • Rainy Days

    Yes

  • Silent Dry

    Yes

  • Small Load

    Yes

  • Steam Fresh

    No

  • Steam Sanitary

    No

  • Super Dry

    No

  • Towels

    Yes

  • Wrinkle Prevention

    Yes

What people are saying

FAQ

Do LG tumble dryers require additional vent installation?

LG's condenser dryers are ventless and can be installed anywhere without space constraints.

What should I consider when buying a tumble dryer?

When selecting a tumble dryer, consider capacity, energy efficiency, and drying technology. LG dryers feature Sensor Dry technology to optimise drying times based on moisture levels, ensuring perfect results while conserving energy. LG's heat pump technology provides greater energy efficiency than conventional vented dyers, using less energy with every load.

With LG ThinQ™ technology, you can remotely control your LG dryer, making laundry management more convenient. LG's sleek designs integrate seamlessly into any laundry space, enhancing both functionality and style.

What is heat pump dryer?

A heat pump tumble dryer operates by recycling warm air within the drum, meaning it uses less energy and is gentler on your clothes. Here’s how it works:



1. Heating the air: The heat pump heats the air and sends it into the drum to absorb moisture from your clothes.



2. Condensation: The moist air is then cooled in an evaporator, where the water is condensed and collected in a tank or drained away.



3. Recycling air: The cool, dry air is reheated and sent back into the drum to continue drying your clothes.

What tumble dryers are energy efficient?

Heat pump tumble dryers are widely regarded as energy-efficient dryers. Specially, LG heat pump tumble dryers are designed with energy efficiency in mind. LG’s Dual Inverter Heat Pump™ technology further reduces energy consumption, offering substantial savings compared to conventional models. This makes LG dryers a good choice, lowering your electricity bills while delivering outstanding drying performance.
